Street lighting is related to data of the street, as its width, distance of two poles, height of pole, angle of light, and so on. If you are skilled in lighting design, then please contact us for IES files, we can send you all IES files, then you please make lighting design yourself. Otherwise, please send me the basic data, we will make lighting design for you and return you professional lighting design reports.

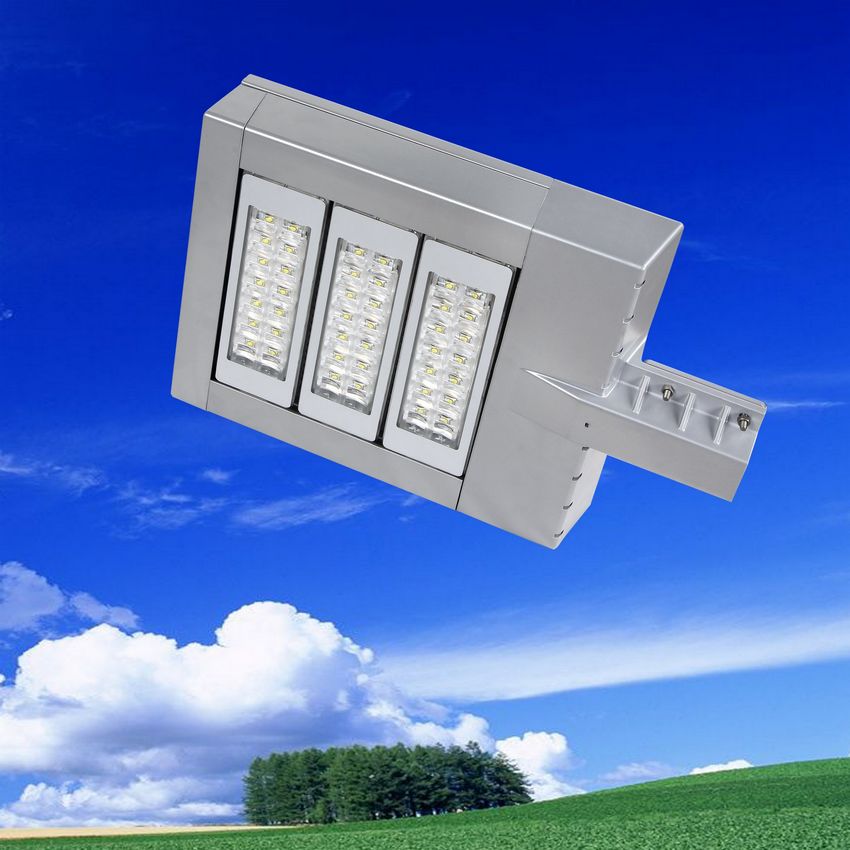

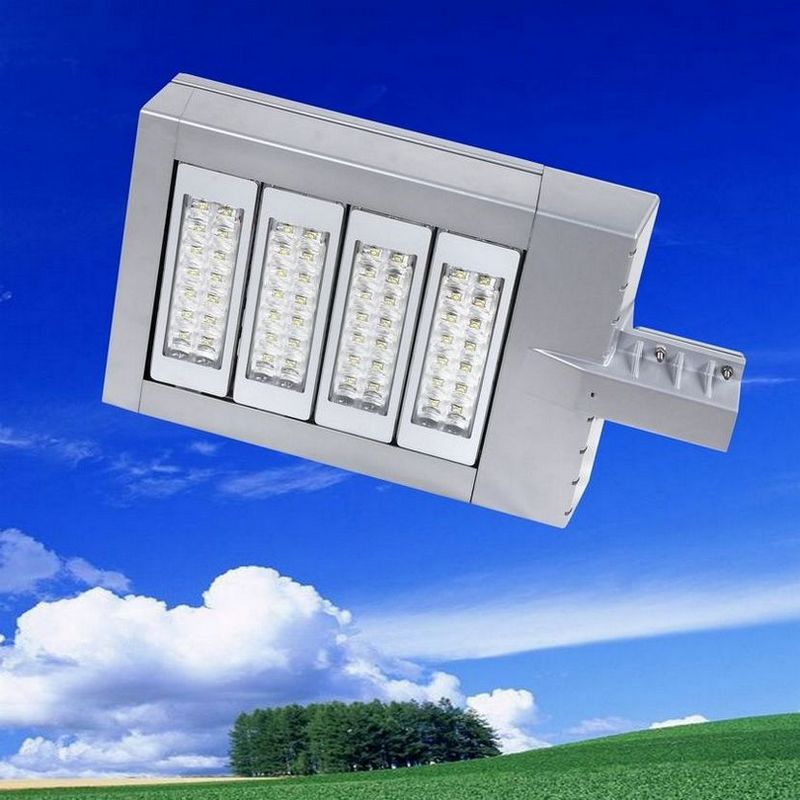

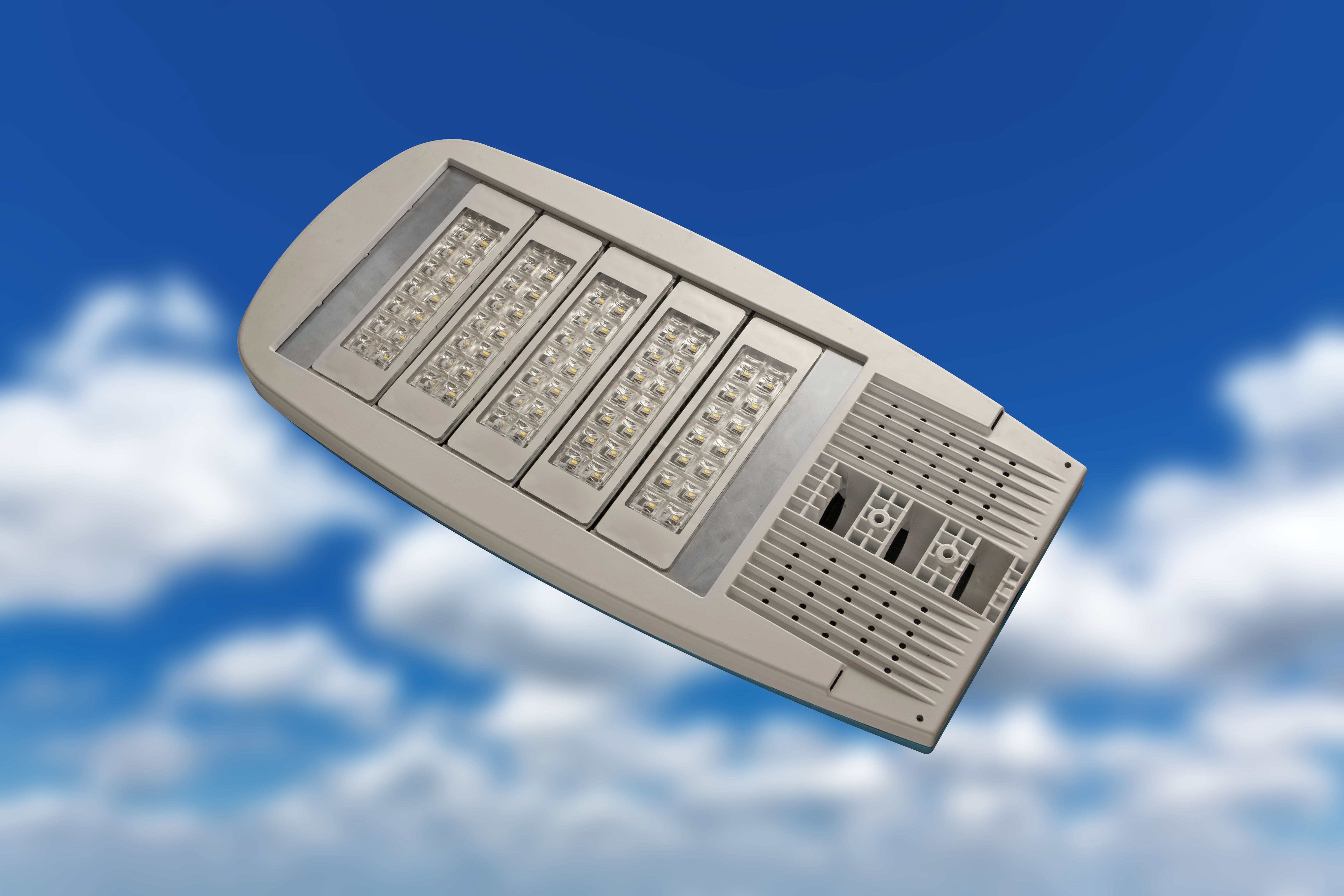

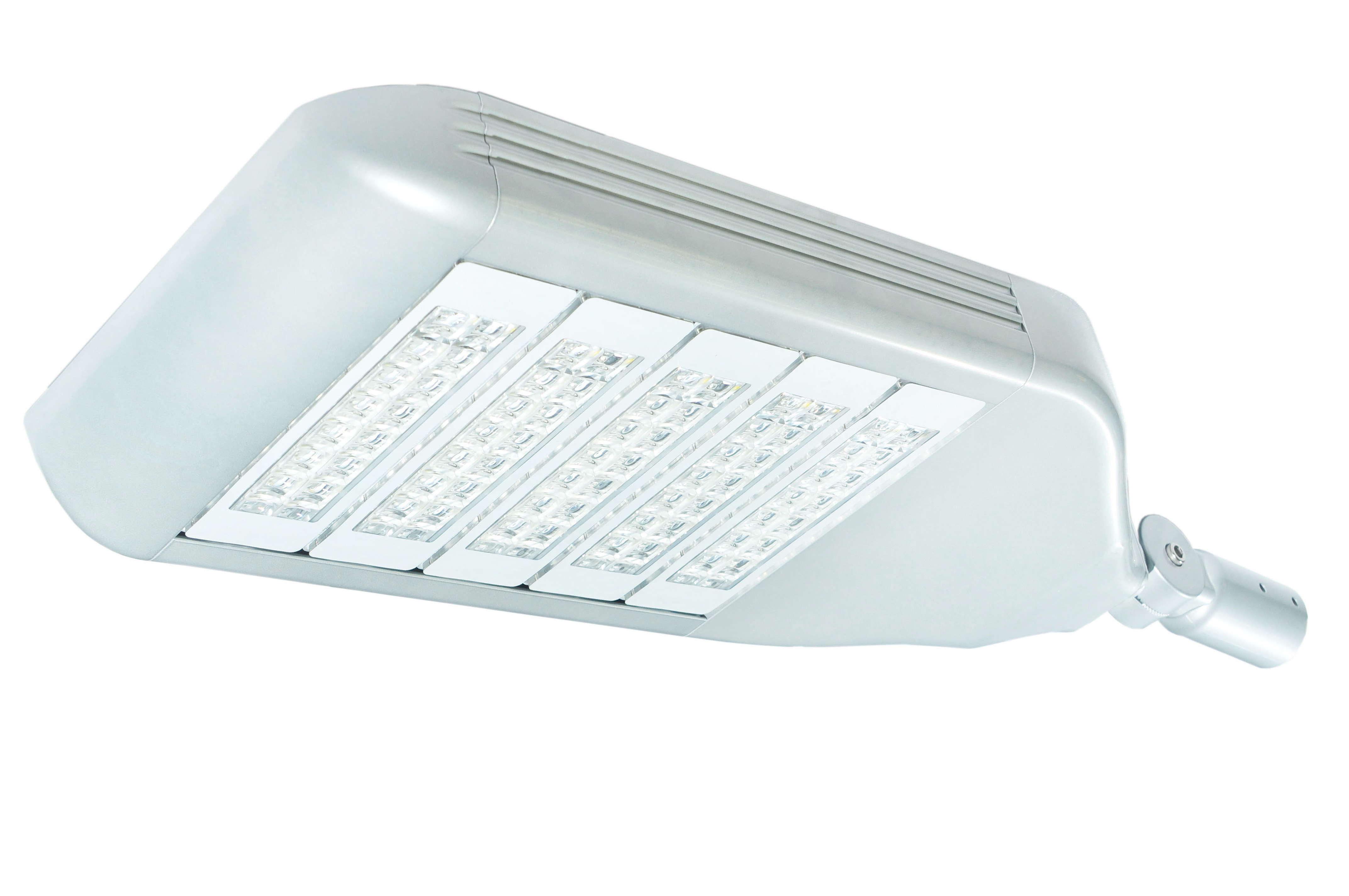

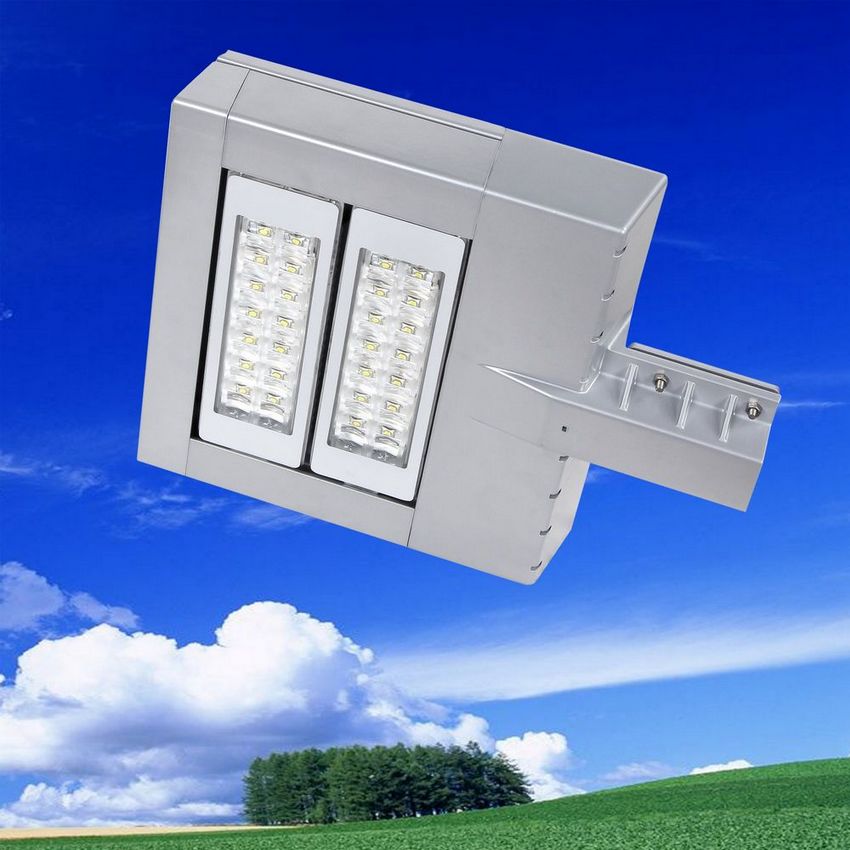

In our products, there are several series of lights can be used for street lighting. They are 2080 series, 3080 series, 3380 series, 3580 series and 2680 series. Besides these, there are still some other series for Chinese domestic market or obsolete. At this moment, 3080 and 2080 are our hot sale products. All the series are in modular design, made of CREE LED and Meanwell drivers. The modules inside are available in two basic light patterns, symmetric and asymmetric, which are correspondent to two different installation styles. Both light patterns are rectangular shape due to our patented optical lens.

All our lights can equip our LED control system, as Zigbee, PLC, DALI and dynamic timer. By the control systems, you may dim the intensity of light and monitor light's status.






Series name

3080

2080

2680

3380

3580




Power[1] available(W)

30,60,90,120,
150,180,210

30,60,90,120,
150,180,210

90,120,150

30,60

30,60

Light name



LELUR13080(CREE)
LELUR23080(CREE)
LELUR33080(CREE)
LELUR43080(CREE)
LELUR53080(CREE)
LELUR63080(CREE)
LELUR73080(CREE)

LELUR12080(CREE)
LELUR22080(CREE)
LELUR32080(CREE)
LELUR42080(CREE)
LELUR52080(CREE)
LELUR62080(CREE)
LELUR72080(CREE)

LELUR32680(CREE)
LELUR42680(CREE)
LELUR52680(CREE)

LELUR13380(CREE)
LELUR23380(CREE)

LELUR13580(CREE)
LELUR23580(CREE)

Light pattern



Installation style








           Symmetric light pattern        Asymmetric light pattern




Optional controller

Zigbee, PLC, DALI, DCF77 dynamic dimmer for dimming and/or monitoring.  And all can connect to photo sensor and motion sensor.


Note 1.

All lights are made of CREE LED and Meanwell driver. In this case, power of module is 30W, however, we do use LED from Epistar to make module in 20W. Therefore power in n*20W are available if we use modules made of Epistar LEDs.













Street lighting
